Load Cell

Ron StageMaster™️ Eilon Load Cells
provide real-time load monitoring and
detect overloads.

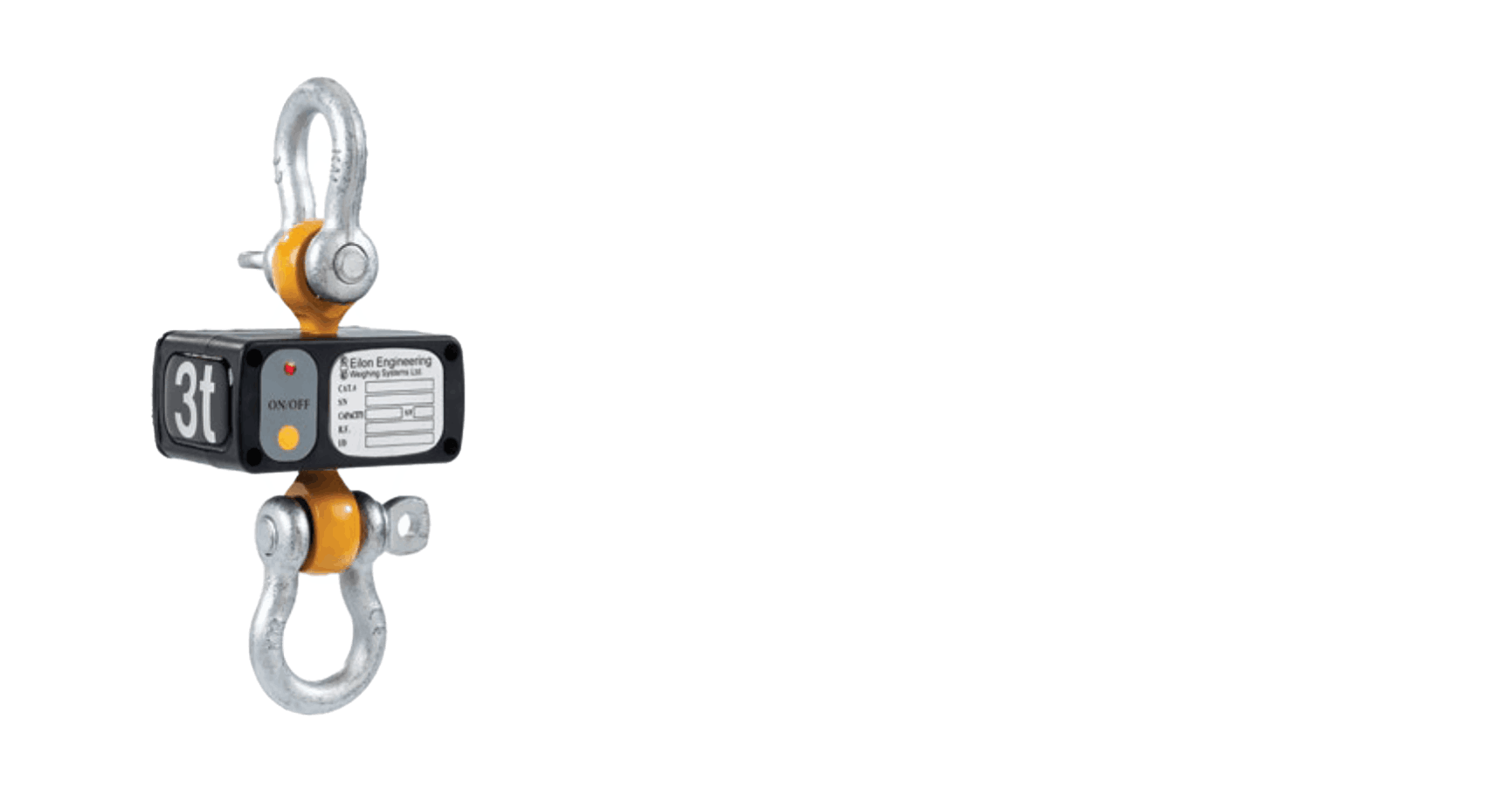

Wired - wireless Classic Load Cells offered by
Eilon Engineering are unmatched in terms of performance,
safety and flexibility.

Mobirise Website Builder

Years of Experience Now in Turkey!..

TECHNICAL INFORMATION

• RF: 2.4 GHz range • RF Transmission Range: Up to 450'/150m in normal operation
• Safety Factor: 5:1 and 10:1 standard
• Safety Features: Fatigue-rated load cells capable of withstanding consecutive load cycles for extended periods without risk of failure or damage to steel.
• Proof Load: 200%
• Accuracy: ± 0.1% of full range

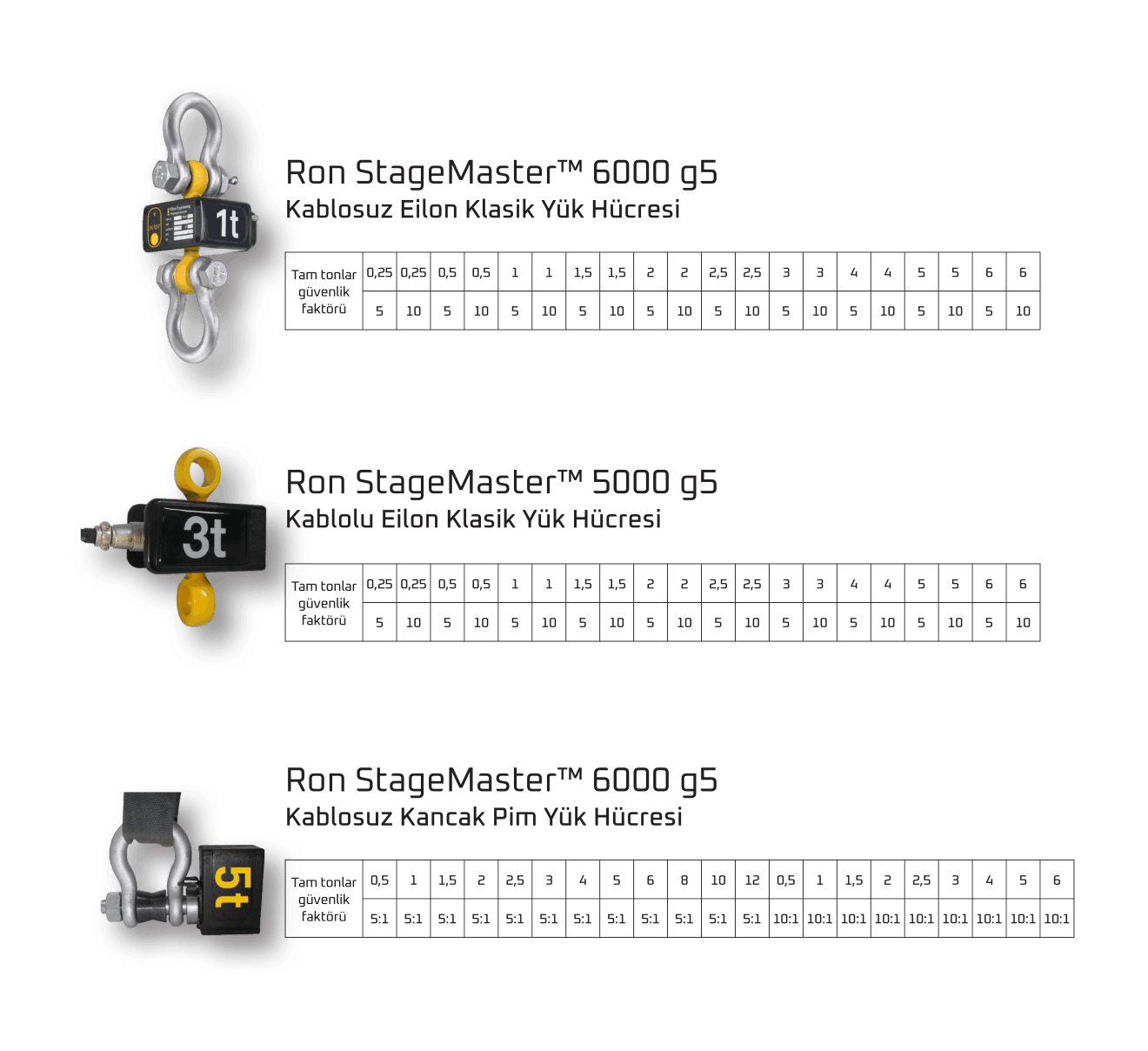

• Capacities: 2 t standard capacity with capacity range between 0.25 t and 6 t
• Display: Using a laptop or PC, the operator can simultaneously monitor and control loads of up to 200 load cells per monitoring station and have all relevant information derived from the load cells on a single screen: Total (group total and overall structure total); Maximum; Tare; Zero; Group (LC); Overload detection; Stage plan layout; Low battery indicator; etc.

• Functions: Total, Maximum, Tare, Reset, Group (LC), Overload detection and warning (visual and audible), Low battery indicator, Report database, User calibration, Group functions (Total, Maximum, Reset, Tare, Overload and customized overload detection), Plan/layout archiving
• Additional Features: Tablet and smartphone compatible • Units: Selectable: Ton, Kg, Lbs.
• Load Cell Material: Made of high-strength, aerospace-grade low-alloy steel, polyurethane coated
• Power: 4 x AA 1.5 Volt Alkaline disposable batteries rated at 3Ah for each load cell; Batteries will operate for up to 5000 hours
• Calibration: User calibration. Initial factory calibration, certified and traceable to NIST
• Temperature Range: Load Cell: -15 °F to +175°F / -25°C to +80°C
• Environmental: Weather resistant; Nema 4; IP 65

Mobirise Website Builder

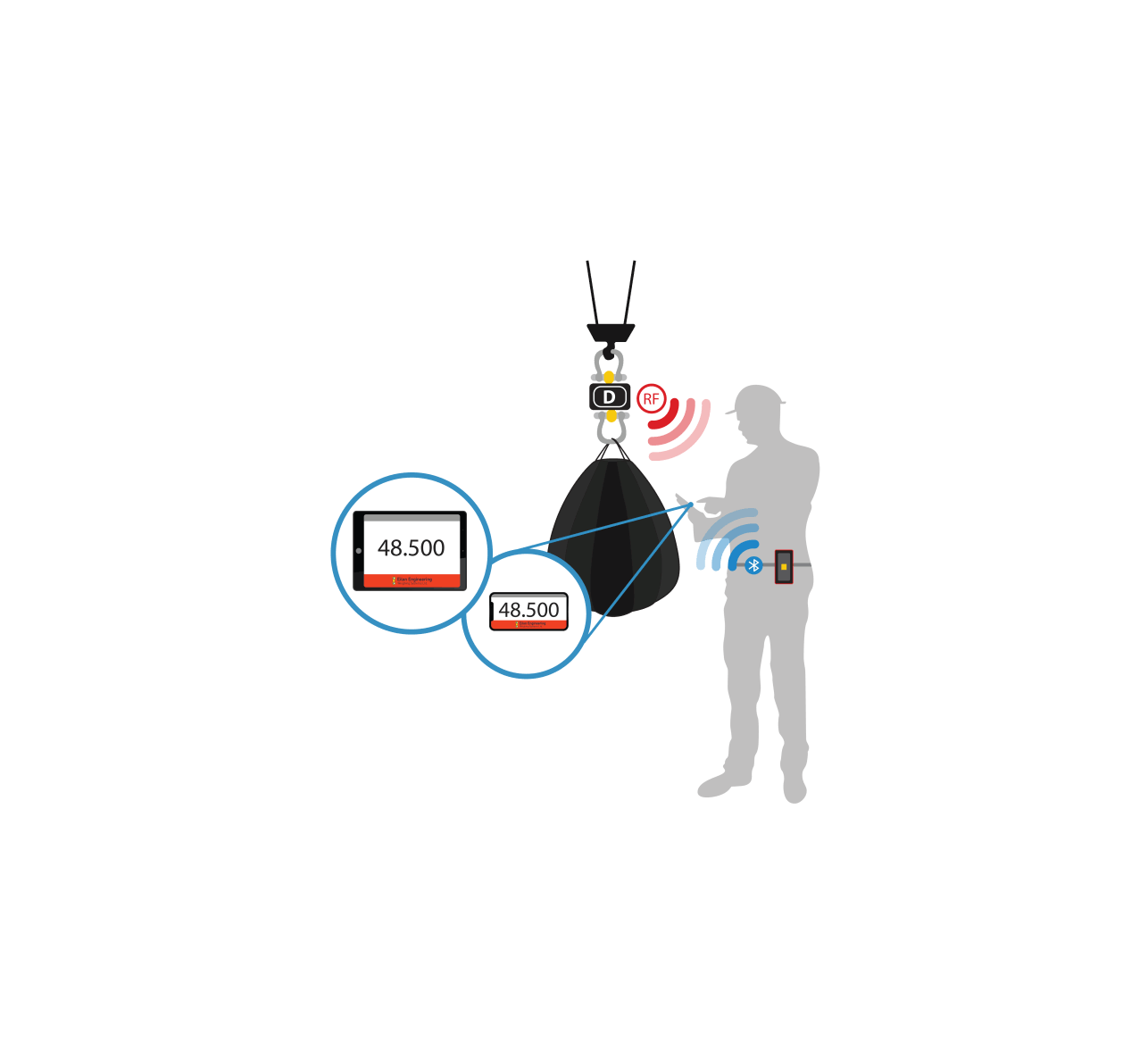

Single Point Load Monitoring

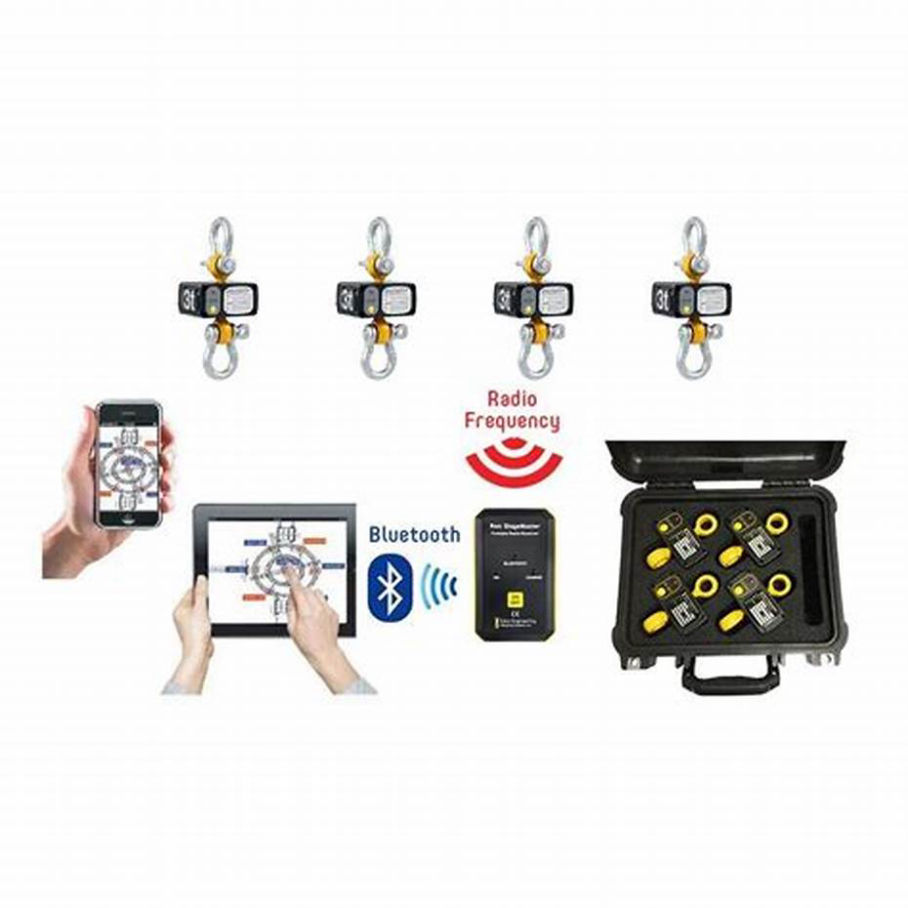

With Ron Crane Scales PRR, users can view measurements from a single crane or hoist on a smartphone or tablet. The load cell transmits measurements to a portable receiver via RF, which then relays them to the smartphone or tablet via Bluetooth.

Mobirise Website Builder

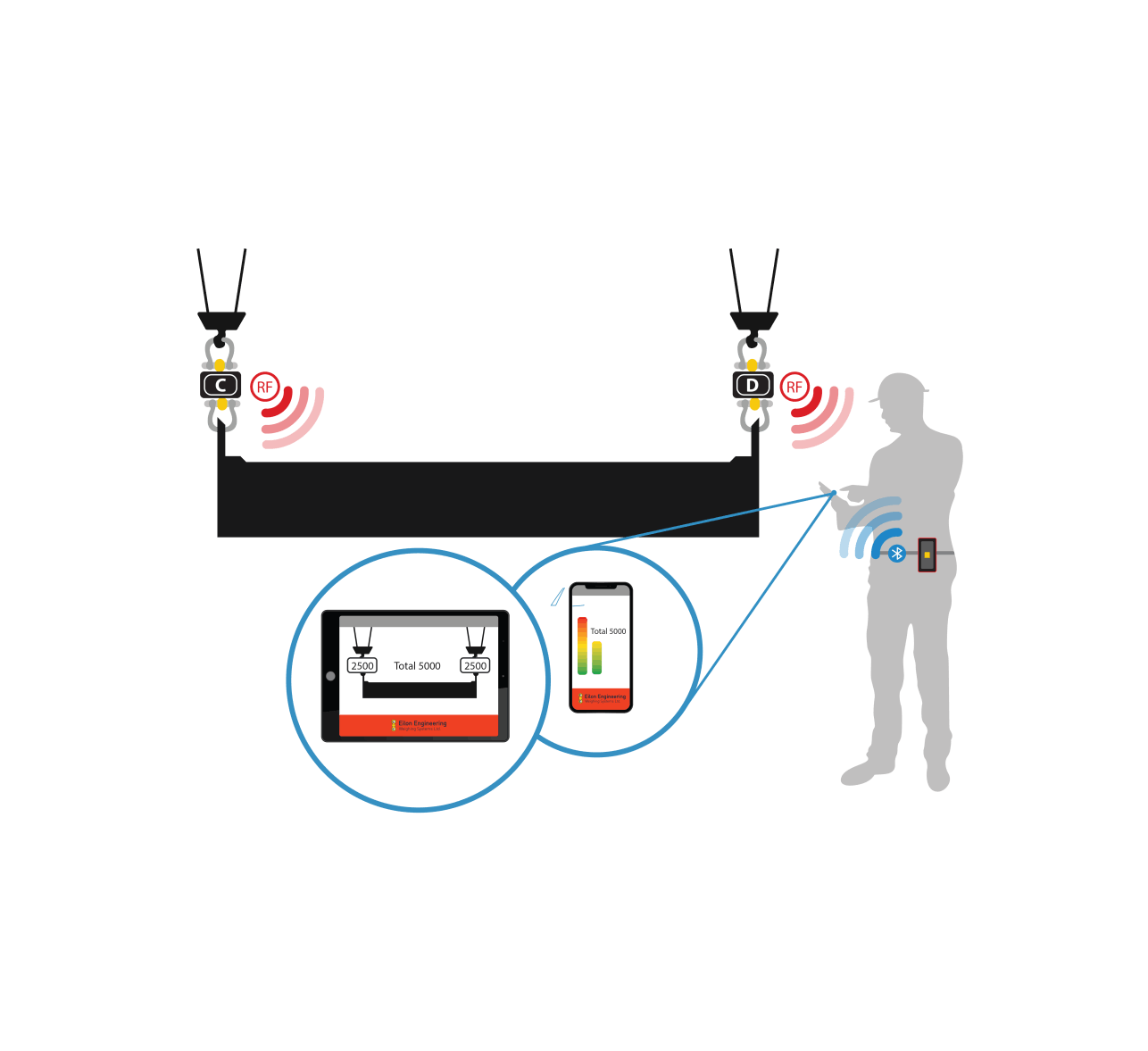

Dual Point Load Monitoring

The scale displays measurements from two points separately and their total load from a smartphone or tablet. Loads can then be viewed as a real-time load map.

Mobirise Website Builder

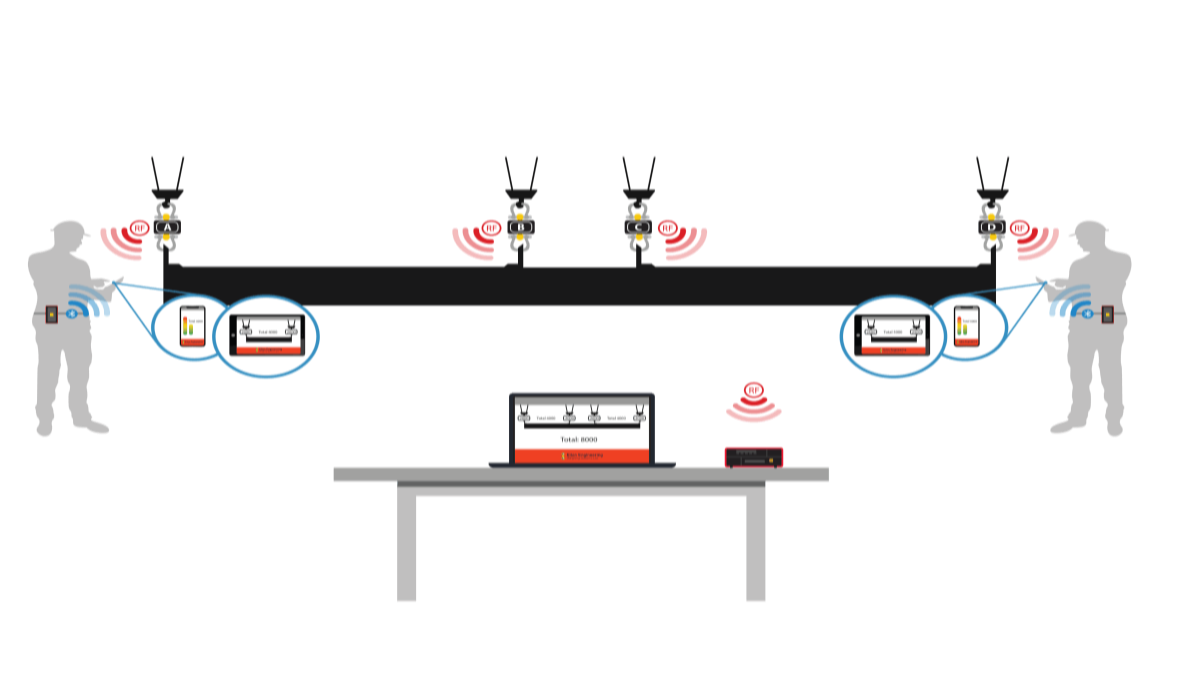

Multi-Point Load Monitoring

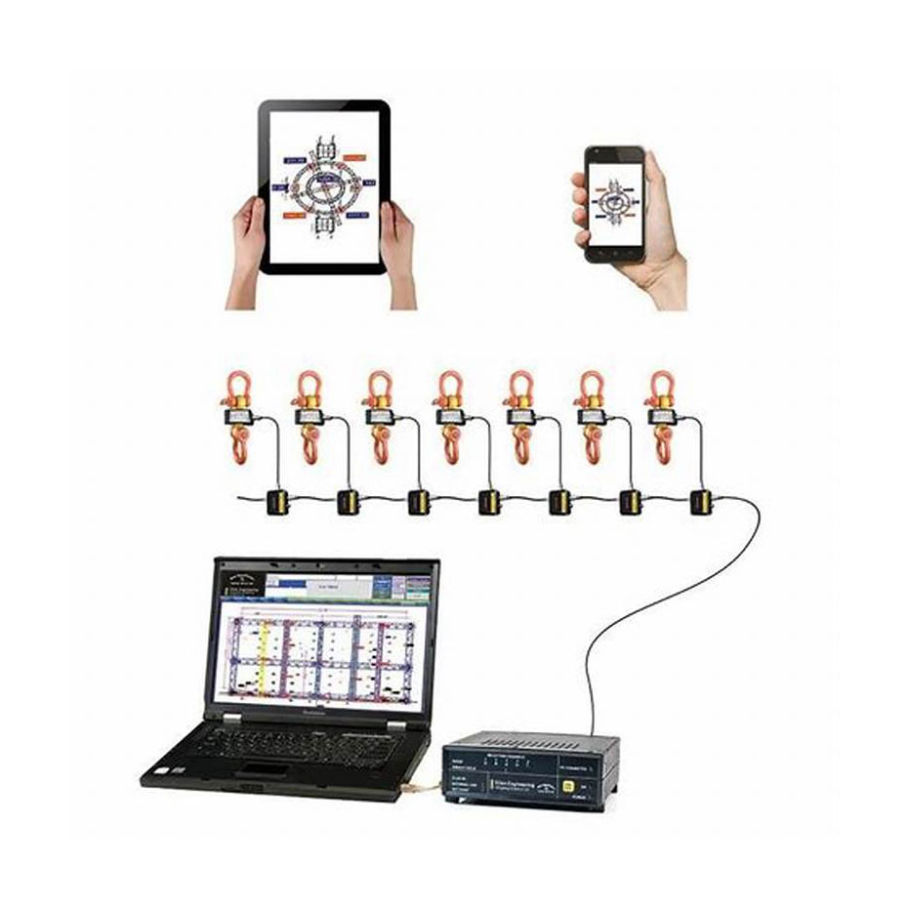

Multiple load points can be monitored simultaneously from a smartphone, tablet, or laptop. Individual measurements as well as user-configurable totals of multiple points can be displayed. All measurements can be viewed as a real-time load map. Additionally, Ron StageMaster PRR allows you to monitor up to 200 load points from a PC using a real-time load map, or each load cell can be monitored individually.

Mobirise Website Builder
Mobirise Website Builder
Mobirise Website Builder



You can watch the video for details.

Mobirise

Frequently Asked Questions

Ron StageMaster™️ Eilon Load Cells are used for real-time load monitoring and detecting overloads. These systems ensure the safe and efficient use of stage equipment.

Yes, Eilon Load Cells are available in both wired and wireless models. Wired models provide a more stable and reliable connection, while wireless models are more flexible and convenient.

Eilon Load Cells can be used in many areas such as concerts, theaters, events, and other stage productions to ensure the safety of stage equipment. They are also widely preferred in industrial applications.

Eilon Load Cells offer high precision and reliability. With real-time monitoring features, they instantly detect load changes and provide information to the user. This ensures a top-tier experience in terms of performance.

Eilon Load Cells detect excessive loads, alert the user, and minimize safety risks. These systems are designed to ensure the safe operation of stage equipment.

Eilon Load Cells offer flexible usage with wired and wireless options. This flexibility allows users to find solutions suitable for various applications. They are ideal for both permanent and temporary installations.
